COMAT CT2 CT3 Time Cube is a plug-in timer system for the high tech automation

Kühn Controls AG supply it worldwide fast and reliable

This and the next web pages are related exclusively to COMAT and MULTICOMAT products that in the past have been developed, manufactured and delivered from Switzerland.
Some of the content is outdated and serves only for illustrative purposes.
The new products are branded COMAT RELECO.

8-/ 11-pole plug-in time delay relay system

The simplest time delay relay system world-wide,
fitting all 8 or 11-pin relay sockets (octal / submagnalite).

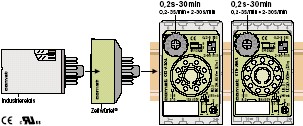

Original time cubes® are simply placed between socket and relay without rewiring.
In this way, even as a retrofit, all industrial relays can be provided with the required timing functions without additional space being required.
The contact connections of the relay on the socket remain through-connected.

All new types …30 (0,2s-30min) are fully compatible with all previous types …20, 21 and …25.

Plug-in time cubes for industrial relays	Series	Time Range	Socket type	Width mm	Contacts
Monofunction Timer 5 functions, time setting	CT2	0.2 s-30min		38	10A
Monofunction Timer 5 functions, time setting	CT3	0.2 s-30min		38	10A

Typical time functions of COMAT, MULTICOMAT:

Delay functions:

E: On delay
A: Off delay
F: On and off delay

Shot timing modes:

W: One shot leading edge
N: One shot trailing edge
Q: One shot and trailing edge

Pulse shaping:

K: Pulse shaping
L: Pulse shaping, retrigger
M: Pulse shaping

Blinker functions:

B: Blinker, pulse start
B1: Blinker, pulse start, trailing pulse
B2: Blinker, interval start

Delayed pulse:

G: On delay single shot
H: On delay single shot

Repeat cycle timer:

I: Repeat cycle timer, pulse start
P: Repeat cycle timer, interval start

Special functions:

Y: Star-delta timer
X1: Restart delay

Pulse sequence monitoring:

U: Pulse sequence monitoring
V: Pulse sequence monitoring

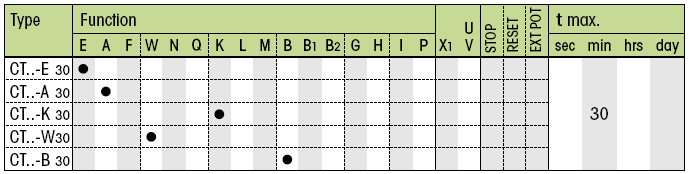

TIME CUBE CT2, CT3
