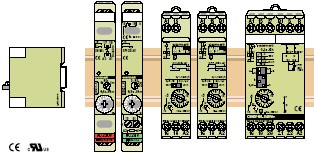

DIN Time Relays COMAT CRE CRA AE2 AA2 CY1 CRV1 CRV2 CSV2 CRV3 CRT3 AM1 AM2 AM3 CM1 CM2 CM3 CNR1 CT1 ECO31 ECO32

This and the next web pages are related exclusively to COMAT and MULTICOMAT products that in the past have been developed, manufactured and delivered from Switzerland.
Some of the content is outdated and serves only for illustrative purposes.
The new products are branded COMAT RELECO.

construction type DIN (Deutsche Industrie Norm / German Industrial Standard)
Comat, Multicomat devices with snap mounting onto T35 type rail are in accordance to DIN standards.
The applicable standards are:

DIN time relays

DIN time relays	Series	Time Range	Socket type	Width mm	Contacts
Economy monofunction Timer	CRE / CRA	0.3 s-30min	DIN 35	13	6A
Economy monofunction Timer	AE2 / AA2	0.8 s-12min	DIN 35	17.5	10A
Star-delta time relay	CY1	0.5-60s	DIN 35	17.5	6A
Multifunction Timer 3 functions	CRV1	0.5-30min	DIN 35	13	6A
Universal Multifunction Timer 5 functions	CRV2	50ms-60h	DIN 35	13	6A
Universal Multifunction Timer 5 functions	CSV2	8ms-10h	DIN 35	13	1,5A
Double time relay	CRV3	50ms-60h	DIN 35	13	6A
Repeat cycle Timer	CRT3	50ms-60h	DIN 35	13	6A
Economy Timer 4 functions	AM1	0.5s-60min	DIN 35	17.5	10A
Universal Timer 4 functions	AM2	0.5s-60min	DIN 35	17.5	10A
Universal Timer with instantaneous contact	AM3	0.5s-60min	DIN 35	35	10A
Universal Timer 4 functions	CM1	50ms-12h	DIN 35	17.5	6A
Universal Timer 4 functions	CM2	0.3s-12h	DIN 35	35	6A
Universal Timer 7 functions	CM3	0.050s-60h	DIN 35	17.5	5A
Time relay with no auxiliary voltage	CNR1	0.1s-12min	DIN 35	17.5	5A
Repeat cycle Timer	CT1	0.1s-30h	DIN 35	17.5	6A
Economy Timer 3 functions	ECO31	0.5s-20min	DIN 35	22.5	6A
Multifunction Timer 6 functions	ECO32	0.1s-12h	DIN 35	22.5	6A

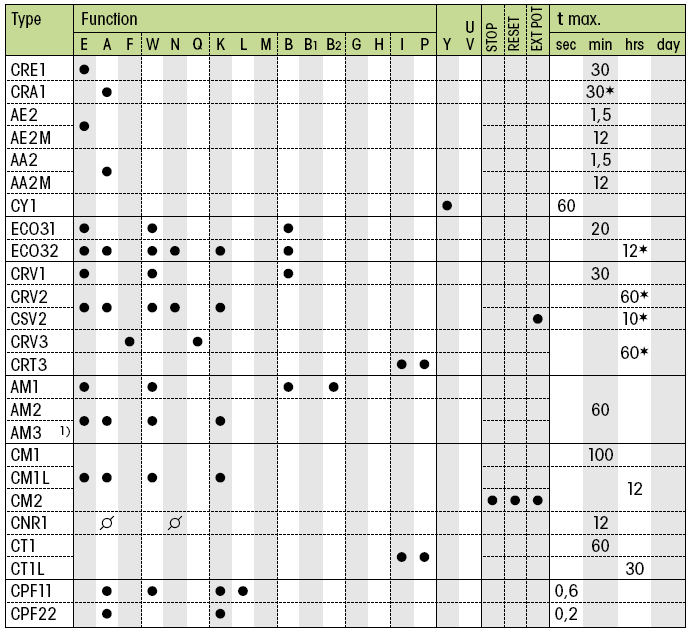

Typical time functions of COMAT, MULTICOMAT:

Delay functions:

E: On delay
A: Off delay
F: On and off delay

Shot timing modes:

W: One shot leading edge
N: One shot trailing edge
Q: One shot and trailing edge

Pulse shaping:

K: Pulse shaping
L: Pulse shaping, retrigger
M: Pulse shaping

Blinker functions:

B: Blinker, pulse start
B1: Blinker, pulse start, trailing pulse
B2: Blinker, interval start

Delayed pulse:

G: On delay single shot
H: On delay single shot

Repeat cycle timer:

I: Repeat cycle timer, pulse start
P: Repeat cycle timer, interval start

Special functions:

Y: Star-delta timer
X1: Restart delay

Pulse sequence monitoring:

U: Pulse sequence monitoring
V: Pulse sequence monitoring
