Programmable plug-in time delay relays MULTICOMAT series RS, C and CX.

This and the next web pages are related exclusively to COMAT and MULTICOMAT products that in the past have been developed, manufactured and delivered from Switzerland.
Some of the content is outdated and serves only for illustrative purposes.
The new products are branded COMAT RELECO.

MULTICOMAT timers CFG, CCX, CX

MULTICOMAT timers RS, CTI

MULTICOMAT timers, side view

Listing

MULTICOMAT Programmable plug-in time delay relays Series Time Range Socket
type		 Width
mm		 Contacts

Multifunction time delay relay, 5 functions

RS121 /
RS121.P

 10 ms-100 h Socket C11A 38 Contacts RS121 5A

Multifunction time delay relay, 5 functions with time Stop and time Reset function

RS121.R

 10 ms-100 h Socket C11A 38 Contacts RS121.R 5A

Universal repeat cycle timer

RS122

 0.1 s-30 h Socket C11A 38 Contacts RS122 6A

Digital multifunction time delay relay, 5 functions

RS321

 10 ms-99.9 h Socket C11A 38 Contacts RS321 5A

Digital multifunction time delay relay with digital display, 5 functions

RS521

 10 ms-99.9 h Socket C11A 38 Contacts RS521 5A

Economy multifunction time delay relay, 5 functions

RS41-M

 0.1 s-15 min Socket C11A 36 Contacts RS41-M 6A

Digital multifunction time delay relay with digital display, 5 functions

CPX519

 0.01 s-999 min Socket C11A 38 Contacts CPX519 6A

Digital repeat cycle timer

CTI519

 2 x 0.01 s-999 min Socket C11A 38 Contacts CPX519 6A

Multifunction time delay relay, 5 functions

CPX129

 0.1 s-15 h Socket C11A 38 Contacts CPX129 6A

One shot cycle timer, 3 double timing modes

CFG126

 2 x 0.1 s- 5 min Socket C11A 38 Contacts CFG126 6A

Repeat cycle timer

CTI129

 2 X 0.1 s- 15 h Socket C11A 38 Contacts CTI129 6A

Multifunction time delay relay, 3 functions

CX38

 2 x 0.1 s- 15 h Socket C11A 38 Contacts CX38 6A

Star-delta time delay relay

CX39

 1-100 ms Socket C11A 38 Contacts CX39 6A

Typical time functions of COMAT, MULTICOMAT time delay relays:

Delay functions:

  • E: On delay
  • A: Off delay
  • F: On and off delay

Shot timing modes:

  • W: One shot leading edge
  • N: One shot trailing edge
  • Q: One shot and trailing edge

Pulse shaping:

  • K: Pulse shaping
  • L: Pulse shaping, retrigger
  • M: Pulse shaping

Blinker functions:

  • B: Blinker, pulse start
  • B1: Blinker, pulse start, trailing pulse
  • B2: Blinker, interval start

Delayed pulse:

  • G: On delay single shot
  • H: On delay single shot

Repeat cycle timer:

  • I: Repeat cycle timer, pulse start
  • P: Repeat cycle timer, interval start

Special functions:

  • Y: Star-delta timer
  • X1: Restart delay

Pulse sequence monitoring:

  • U: Pulse sequence monitoring
  • V: Pulse sequence monitoring

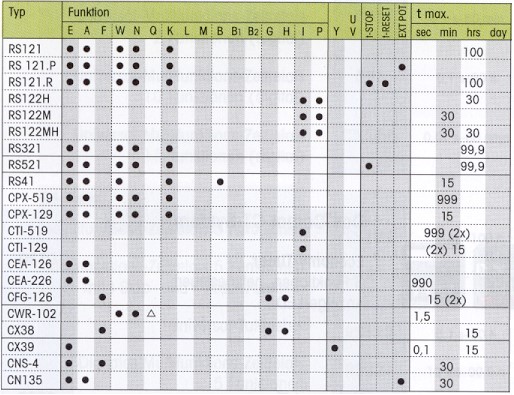

MULTICOMAT plug-in time delay relays RS121, RS122, RS321, RS521, RS41-M, CPX519, CTI519, CPX129, CFG126, CTI129, CX38, CX39, CNS-4, CN 135
